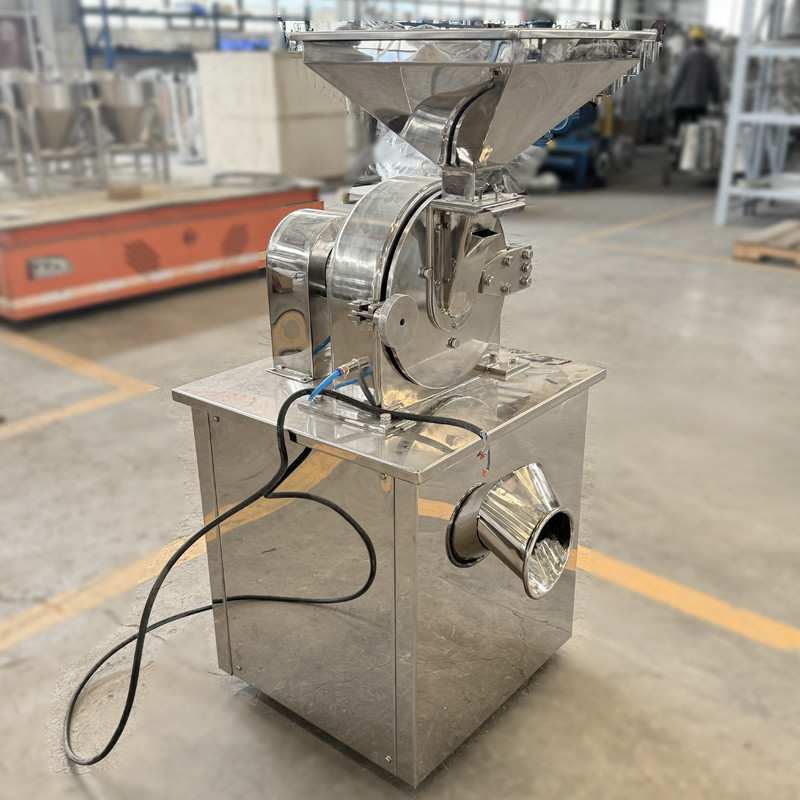

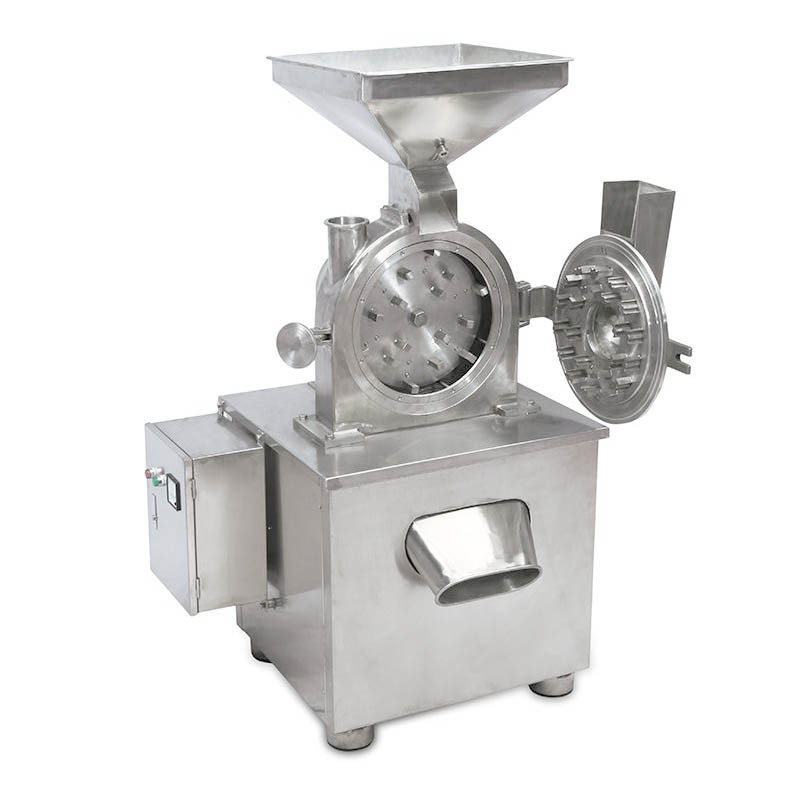

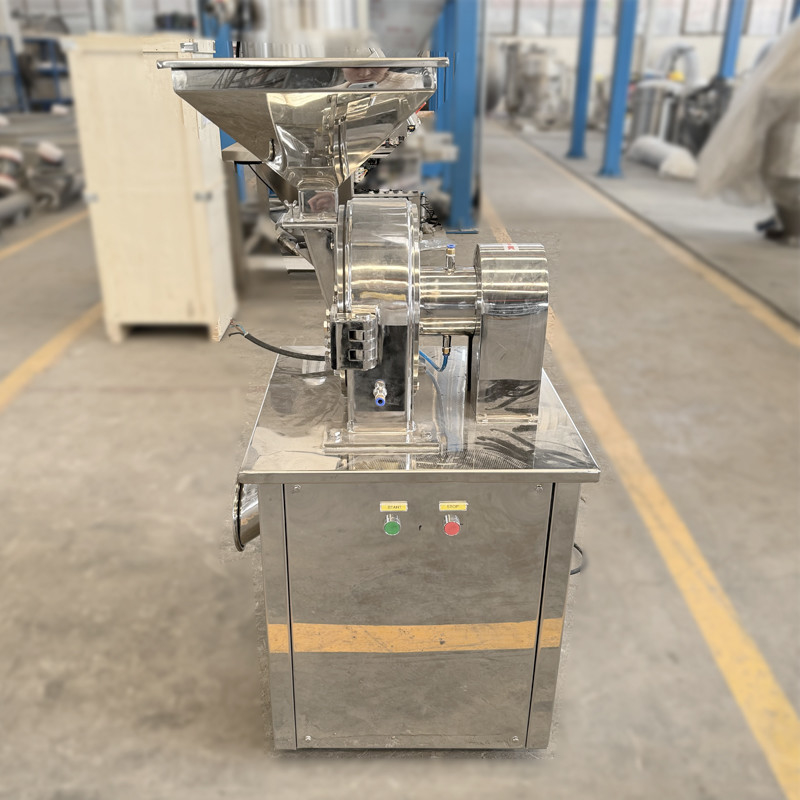

Pulverizer Machine

Product description
The universal crusher is a crushing equipment that integrates high efficiency and multiple functions. With the high-speed rotating blades or hammer pieces, it can easily crush and refine soft and hard materials such as metals, plastics and glass through the combined force of impact, shearing and friction. Its advantage lies in the fact that the particle size of the output can be precisely controlled by adjusting the rotational speed and the aperture of the screen, meeting different production requirements. Meanwhile, it is equipped with safety designs such as overload protection and dust-proof sealing, and operates stably and reliably. Whether it is industrial waste treatment, resource recycling, or raw material pretreatment, it can efficiently complete the crushing task and is a powerful tool for material processing in multiple industries.
Working principle
The universal crusher operates on the core principles of "impact, shearing and grinding". The materials enter the crushing chamber through the feeding port. The variable frequency motor drives the high-speed main shaft to drive the hammer pieces or tools (with a linear speed of 80-120m/s), and under the action of centrifugal force, the materials are subjected to the initial impact crushing. The crushed materials, driven by high-speed gas flow, are subjected to secondary crushing by the inner wall tooth ring and liner of the cavity, and at the same time, they are refined by shear force in the gap between the hammer pieces and the liner. The classification wheel and screen inside the cavity control the particle size. Qualified materials are discharged by air flow or gravity, while unqualified particles are thrown back by the classification wheel for recycling and crushing. By adjusting the rotational speed, screen aperture and feeding rate, coarse crushing to micron-level grinding can be achieved. The water-cooled or air-cooled system prevents overheating.

Features & Benefits

It has a wide range of applications and can handle various soft and hard materials such as metals, plastics, glass, and wood. Whether it is brittle or tough materials, it can be efficiently crushed to meet the needs of multiple industries.
2. It has a high crushing efficiency. The high-speed rotating knives or hammer pieces, in combination with multiple crushing mechanisms, can quickly crush materials, and its production capacity is significantly higher than that of ordinary crushers.
3. The particle size is flexibly adjustable. By adjusting parameters such as rotational speed and screen aperture, the particle size of the output can be precisely controlled, achieving everything from coarse crushing to fine grinding.
4. It features strong safety and stability, equipped with overload protection, dust-proof sealing, intelligent temperature control and other devices to reduce the risk of failure and ensure the long-term stable operation of the equipment.
5. Energy conservation and environmental protection: The optimized power system reduces energy consumption, and the sealed design effectively prevents dust from spilling out, lowering environmental pollution.

Product parameter


Production line schematic diagram

Detail display


Product display

Application


Packaging & Shipping


Why Choose Us




About us
