Ribbon Blender

Product description

The helical ribbon mixer is a horizontal mixing equipment. Inside its cylinder, there are double-layer reverse helical ribbons. The outer helical ribbon pushes the materials from both ends to the center, while the inner helical ribbon pushes the materials from the center to both ends. Through this axial convection circulation combined with the radial shearing force and the gravitational throwing effect, it can quickly mix powder, granules or low-viscosity materials evenly. It features high mixing efficiency, wide application range, compact structure and easy cleaning, as well as low energy consumption. It is widely used in the material mixing processes of industries such as chemical engineering, food, medicine and building materials.

Working principle

The main body of the helical ribbon mixer is a horizontal U-shaped cylinder, with a feeding port at the top and a discharging port at the bottom. Double-layer reverse helical ribbons are installed on the main shaft inside the cylinder and are driven to rotate by a motor through a reducer. The two ends of the cylinder are equipped with sealed bearings and dust covers. Some models are provided with observation ports.
The materials are fed into the top feeding port. After startup, the inner and outer screw belts rotate at a low speed in opposite directions. The outer screw belt pushes the materials on the cylinder wall from both ends to the center, while the inner screw belt pushes the materials in the center to both ends, forming axial convection. At the same time, the shearing force causes the materials to roll radially and be thrown and mixed under the action of gravity. After the set time is reached, the uniform material is discharged from the bottom discharge port.

Product features

1. High uniformity of mixing: Through the axial convection circulation formed by the inner and outer reverse helical ribbons, combined with the radial shearing and gravity dropping effects, the uniformity of mixing can reach over 99%, meeting the high-precision proportion requirements of the pharmaceutical, food and other industries.
2. Strong material adaptability: It can handle powder, granular materials and low-viscosity paste materials, and has strong inclusiveness for differences in material particle size and density, and is not prone to stratification.
3. Gentle and low-loss mixing: Low-speed operation reduces the frictional breakage and temperature rise of materials, making it suitable for heat-sensitive, easily caking or brittle materials.
4. High-efficiency and low-consumption operation: Compared with high-speed mixing equipment, it has lower power demand and noise ≤75 decibels, with low energy consumption cost. At the same time, it has a compact structure and is easy to maintain. After shutdown, residual materials can be quickly cleaned up, making it suitable for batch production.

Model	Volume(L)	Motor power (kw)	Spindle speed(r/min)	Primary mixing (kg) M ³	L*W*H(mm)	Weight (kg)
WLDH-0.3	300	3	41	240	2300*680*1060	750
WLDH-0.5	500	5.5	41	400	2900*780*1240	1000
WLDH-1	1000	11	33	800	3200*1000*1400	1800
WLDH-2	2000	15	33	1600	3860*1200*1650	2200
WLDH-3	3000	18.5	33	2400	4320*1300*1900	3200
WLDH-4	4000	22	28	3200	4600*1400*2000	4000
WLDH-5	5000	37	28	4000	4850*1500*2020	4650
WLDH-6	6000	37	22	4800	5400*1560*2200	6280
WLDH-8	8000	45	22	6400	5100*1720*2420	8500
WLDH-10	10000	55	19	8000	5610*1750*2360	9300
WLDH-15	15000	90	17	12000	5820*2000*3160	11000
WLDH-20	20000	110	11	16000	6060*2630*3160	13500

































































Product details

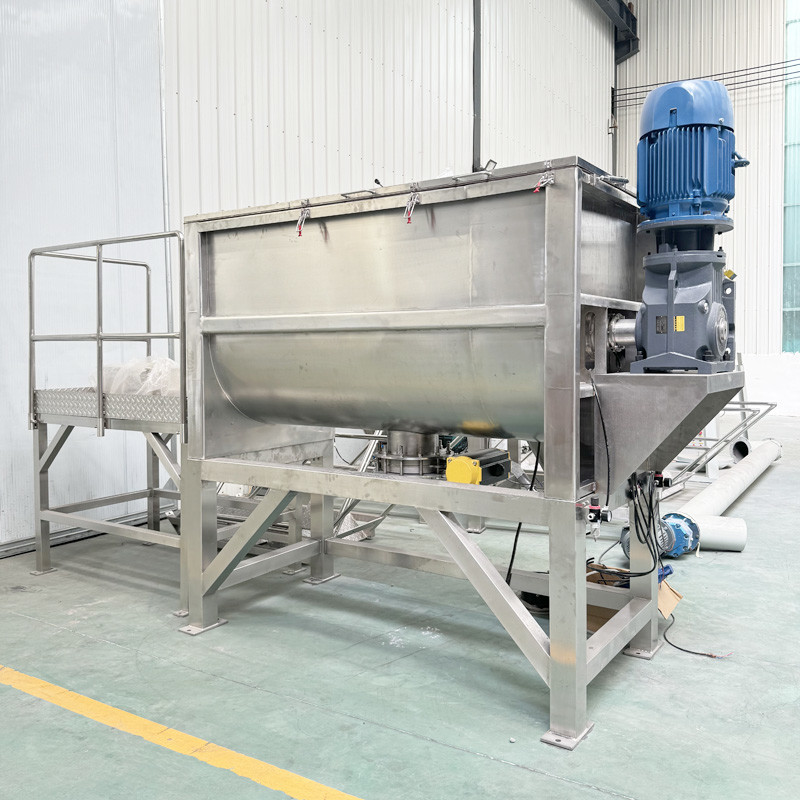

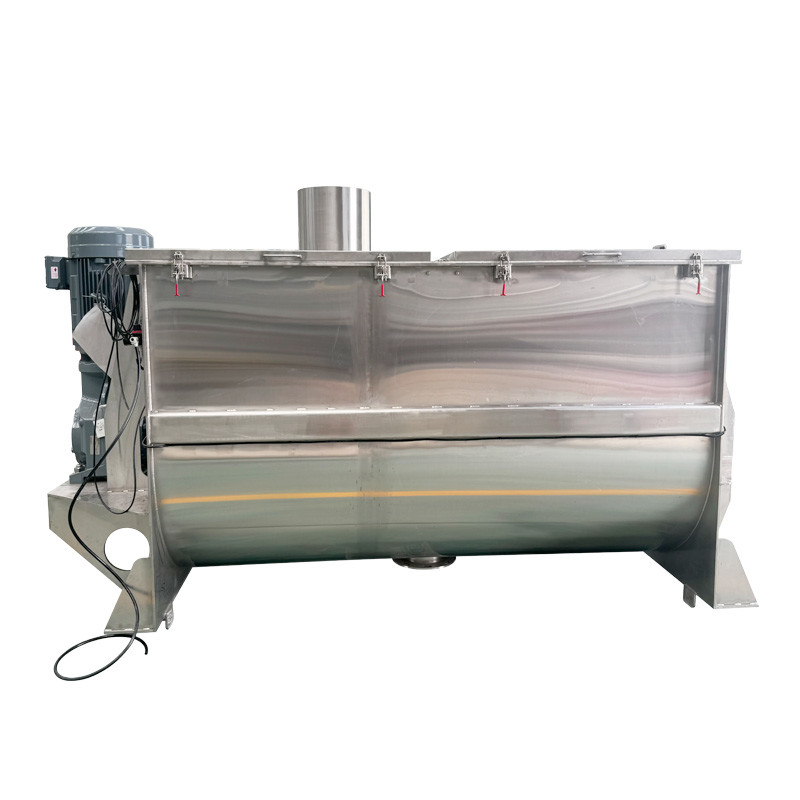

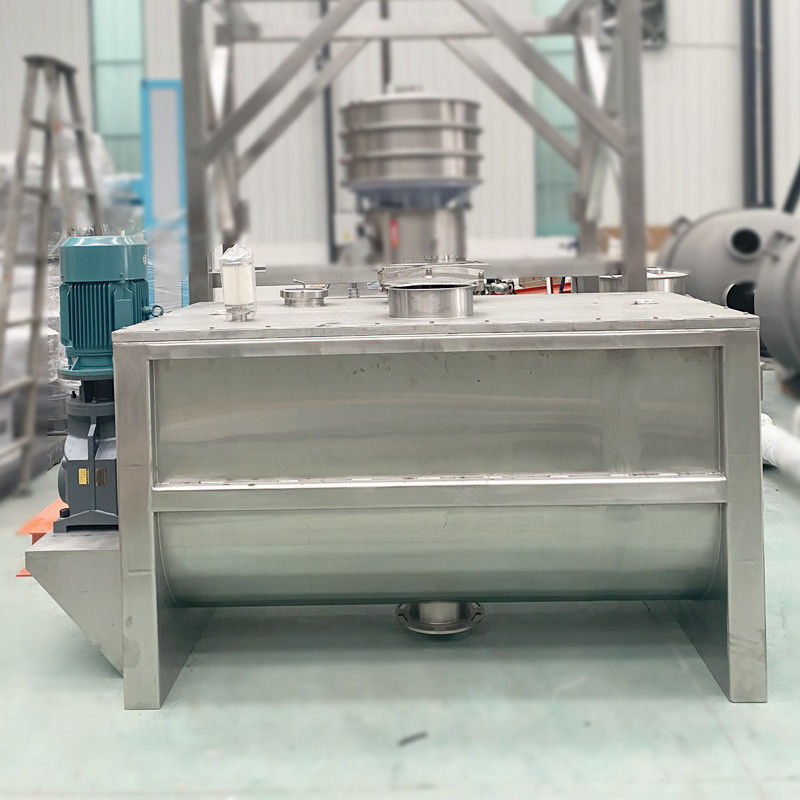

Product shows

Product application

Mixing with a screw ribbon mixer not only takes a short time but also has good mixing results, and it is a highly practical mixing device. is usually used for mixing powders with powders or powders with liquids, so it is widely used in the pharmaceutical, food, pesticide, dye, chemical and plastic industries.
